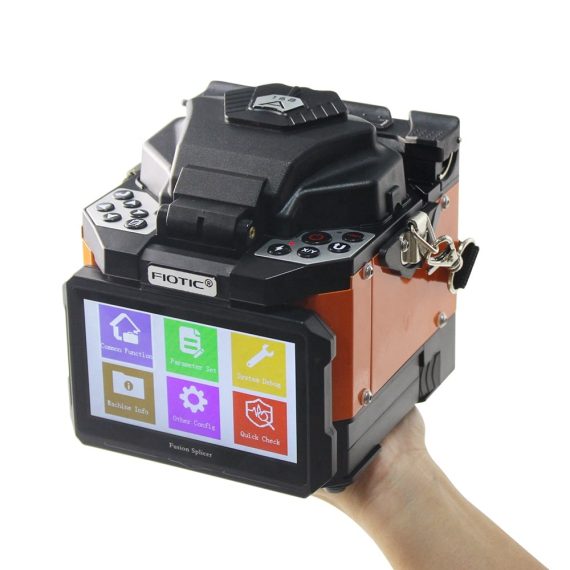

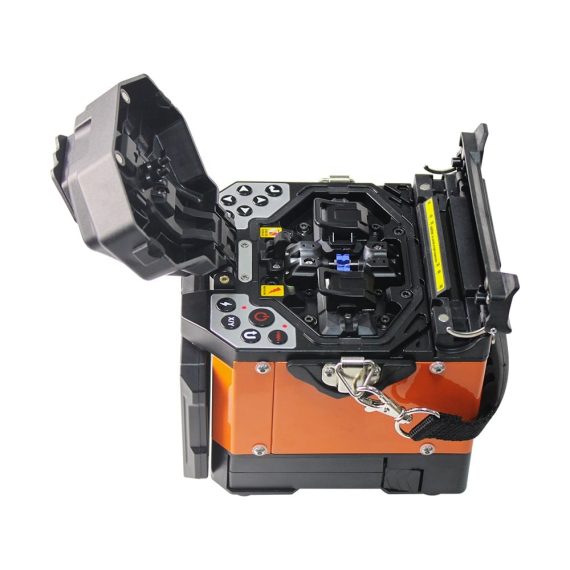

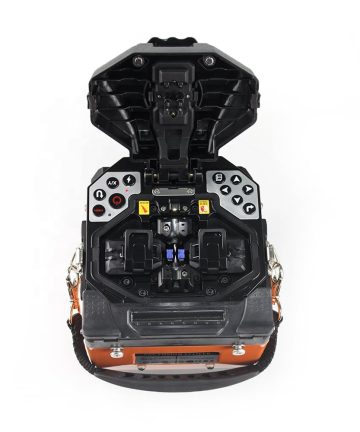

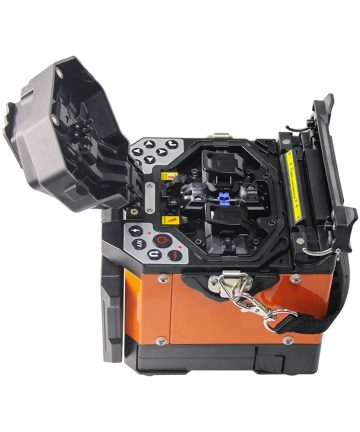

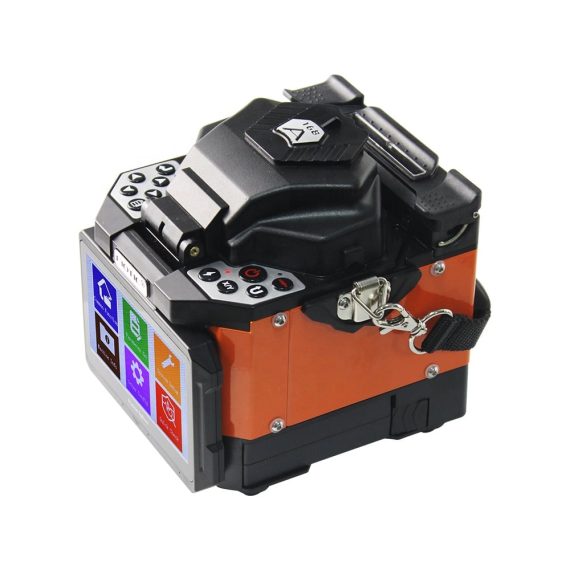

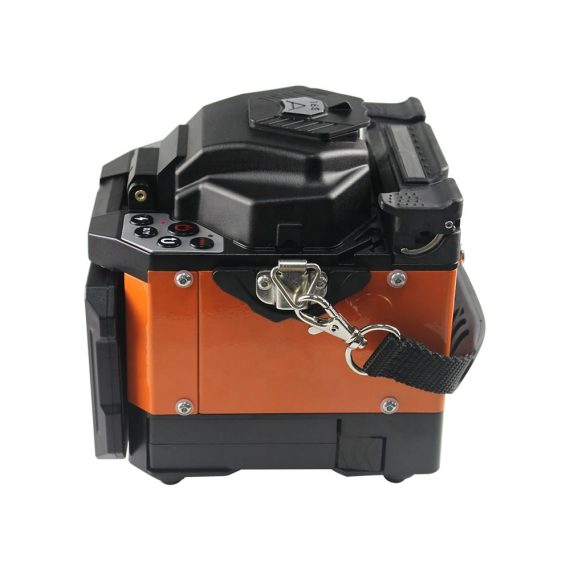

Data SheetOur Fiotic – 168A Fusion Splicer is one of the best on the market. With a super low splicing loss, its application for construction of trunk lines and FTTH connections is incredible. The lightweight and compact design allows for easy use in confined spaces. The easy to use guided interface has a huge amount of functions for the installer to chose from. It has a removable large capacity Li-Ion battery can support a full days worth of work in the field. As the design of the Fiotic 168A is made for rough environments, dust, temperature, humidity and air pressure are not an issue for this splicer. Allowing for working in unfavorable environments and creating a greater guarantee of consistent low loss splicing results. Your experience with the Fiotic 168A will be unmatched for quality at a reasonable cost.
Southern Elements will handle any repairs, servicing or calibration needs your company might have regarding this equipment.
Main Features

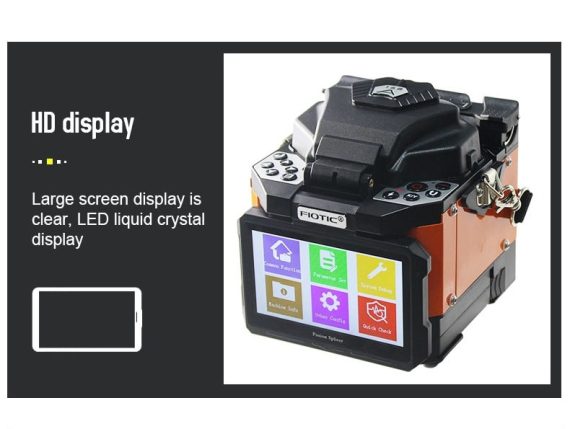

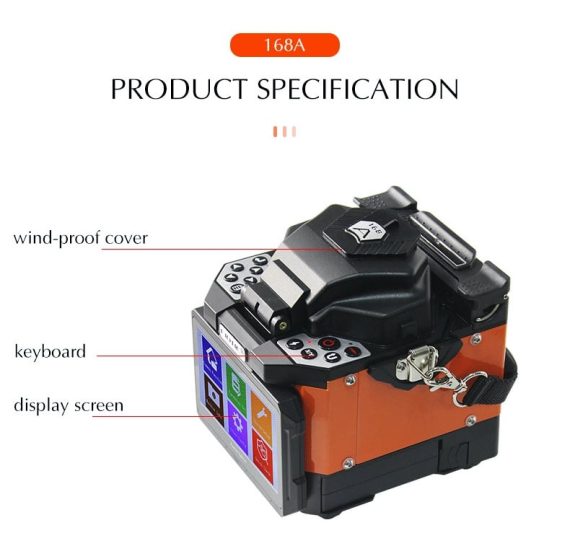

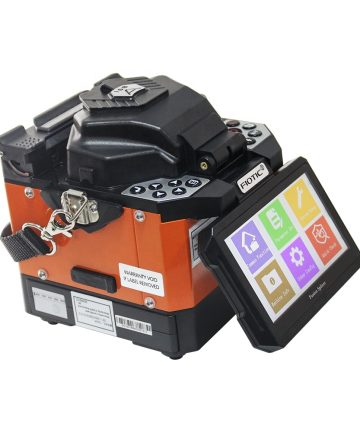

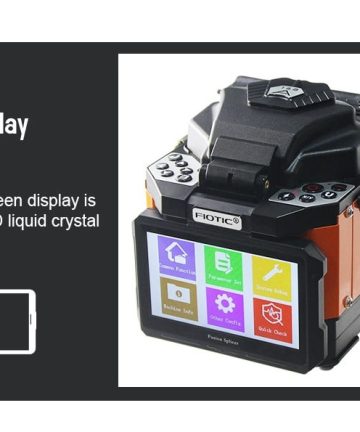

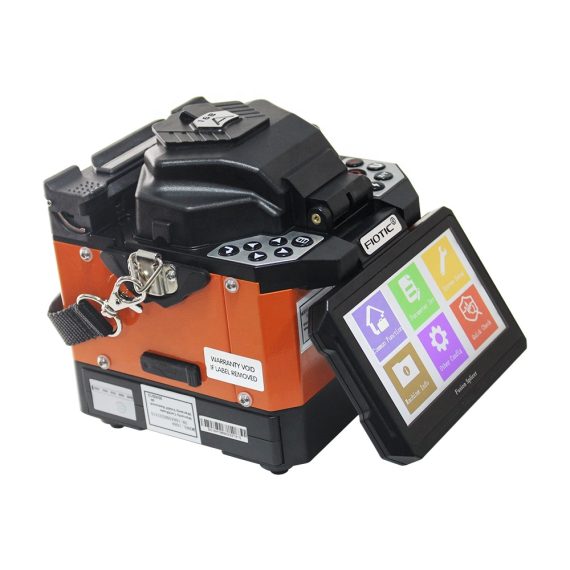

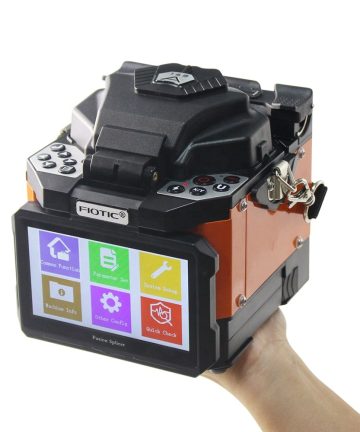

• 5 inches high resolution colorful LCD display, screen can be adjusted according to position

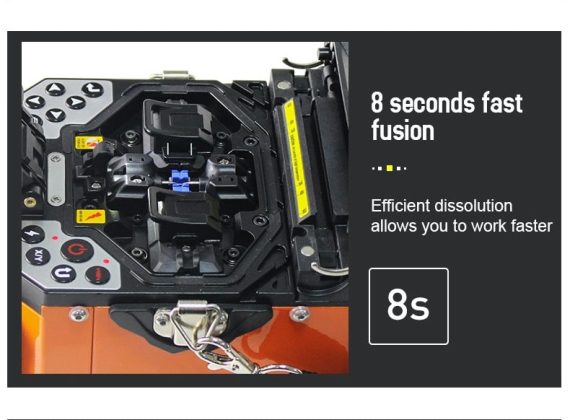

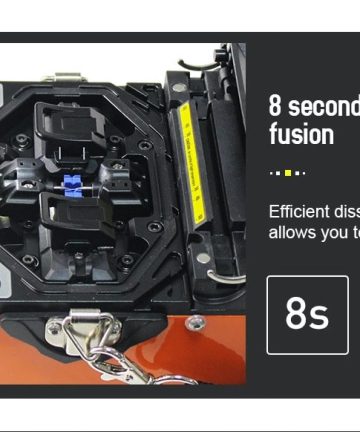

• Average splice time: 8 seconds
• Average tube-heat time: 25 seconds
• Lithium battery: Rechargeable and up to 200 times of continuous splice and heat after fully charged
• X or Y axis Separately views with 400 times magnification, or Simultaneously 220 times
• New developed technology providing strong wind and dust resistance
• Storing 6,000 groups of latest splice results
• New technology for fiber cladding alignment, enhanced accuracy

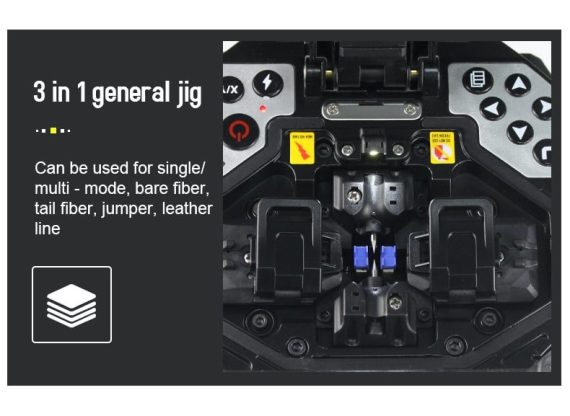

• New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber

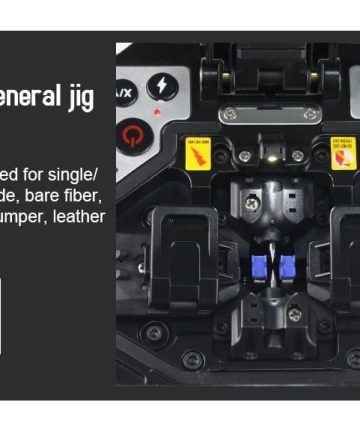

• New Multipurpose 1+N fixture

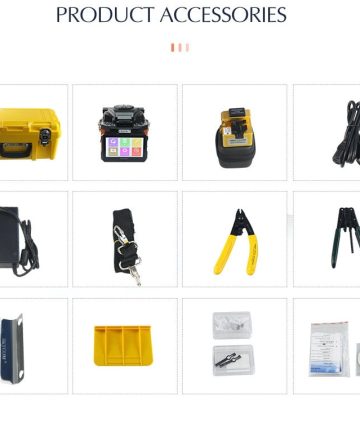

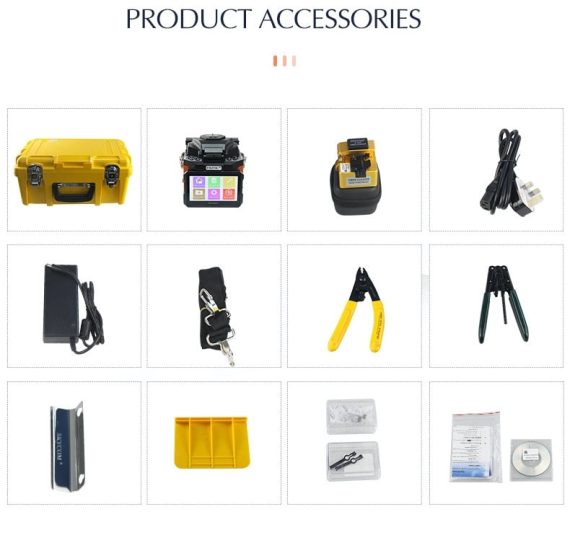

Includes
• Fiotic 168A Fusion Splicer
• Hard Shell Carrying Case
• Carrying Strap
• Power Adapter
• Fiber Cleaver
• Fiber Jacket Stripper
• Fiber Stripper CFS-3
• Replacement Electrodes
• Case Cooling Tray Extender

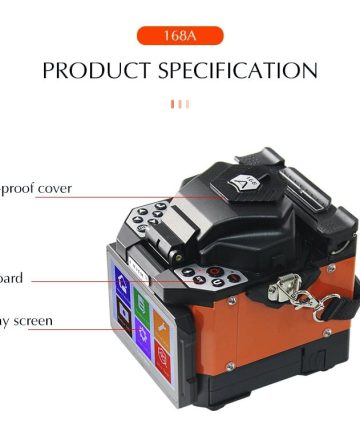

Specifications:
| Model | 168A |
| Applicable Fibers | SM (ITU-T G.652), MM (ITU-T G.651), NZ-DS (ITU-T G.653), NZDS (ITU-T G.655), EDF, Pigtail Cable (rubber Insulated Wire), Others (Including G.657 & G.651) |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Splicing Time | 8 Seconds |
| Splicing Heating Time | 15 Seconds |
| Splicing Program | 50 Groups |
| Protection Sleeve Length | 40mm, 45mm, 60mm |
| Operating Language | English |
| Operating Conditions | -10~+50°C (Operating temperature), 0~95% RH(Humidity), 0~5000m (Altitude) |
| Power Supply | AC adapter: 100~240V input voltage, 50/60Hz; 15V, 5A output voltage (DC) |
| Battery | Inner lithium battery: 11.1V, 5.2 AH, Up to 200 times splice and heat |
| Monitor | Dual cameras, 90 degrees bi-directional |
| Fiber Image Magnification | X or Y Separately 400 times or simultaneously 200 times |
| Fusion Type | Cladding Splicer |
| Estimate Splice Loss | Available |
| Cleaving Angle Detectable | Available |
| Camera Settings | Automatic & Manual |
| Motor Settings | Automatic & Manual |
| Tension Test | 1.96 ~ 2.25N |
| Splice Result Storage | 6,000 of most recent splices |
| Splicing Model | Full Auto, Ato, MAnual & Stepping |
| Terminal | USB |
| IP Rating | IP52 |
| Dimensions | 120(W)*120(D)*130(H)mm |
| Weight | 1.29kg (without battery pack) |
