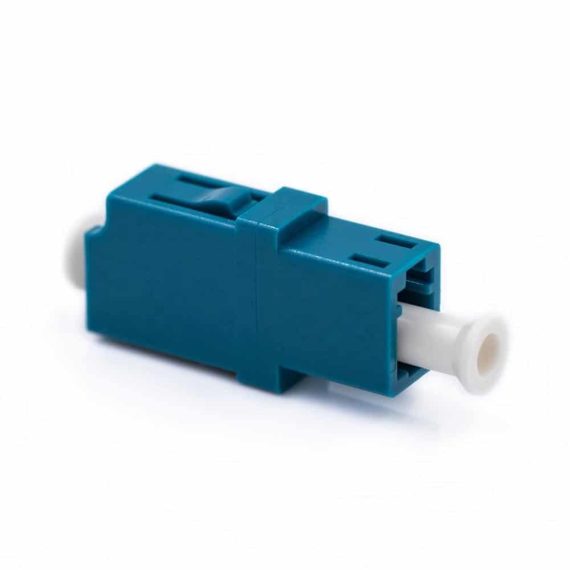

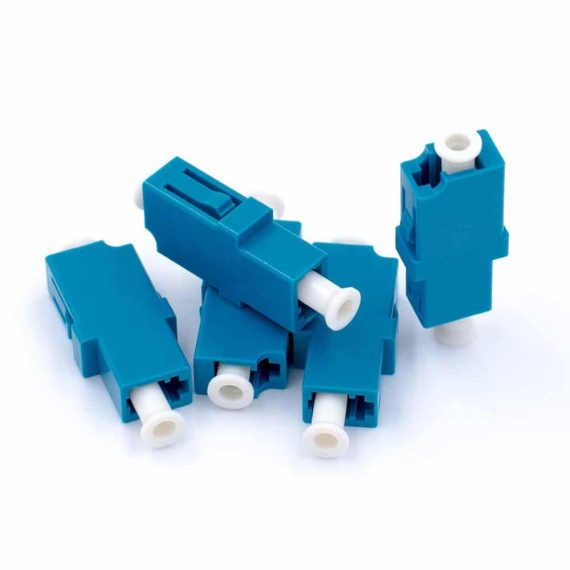

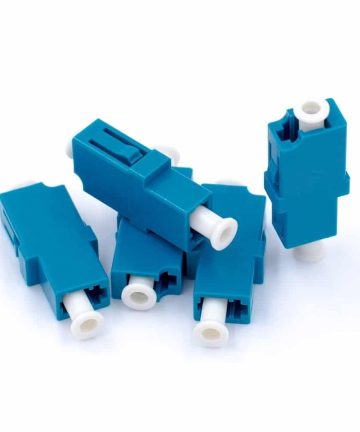

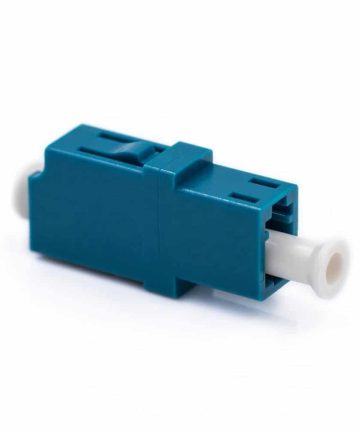

Data SheetThe fiber optic midcoupler adapter is a small device designed to join fiber optic cables or connections between two points.
Using our precise fiber optic adapters to join connection points, light sources will be able transmit signal as incredibly low loss levels thanks to the ceramic ferrul insert that precisely aligns fiber connectors. Our fiber optic adapters have the benefits of low insertion loss as well as high insertion durability.
These midcouplers are not designed for patch panels or enclosures.
Dust caps are included with each mid coupler.
.
Specifications:
| Connector Type | LC-LC |
| Body Style | Simplex |
| Polish | UPC |
| Fiber Type | Single Mode (9/125μm) |
| Insertion Loss |
≤0.2dB
|
| Durability | 1,000 times |
| Mounting Type | Flangeless |
| Colour | Blue |
| Body Material | PVC Plastic |
| Sleeve Material | Ceramic |
