Data SheetThis Fiber optic cleaver is used to cut the glass fiber strand for fusion splicing. It is also ideal for preparing fiber for pre-polished connectors to make a good end face connections, which is very important in the fiber splicing process, usually it works together with the fusion splicer to meet the installers needs.

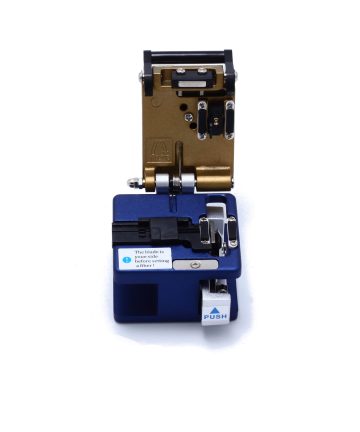

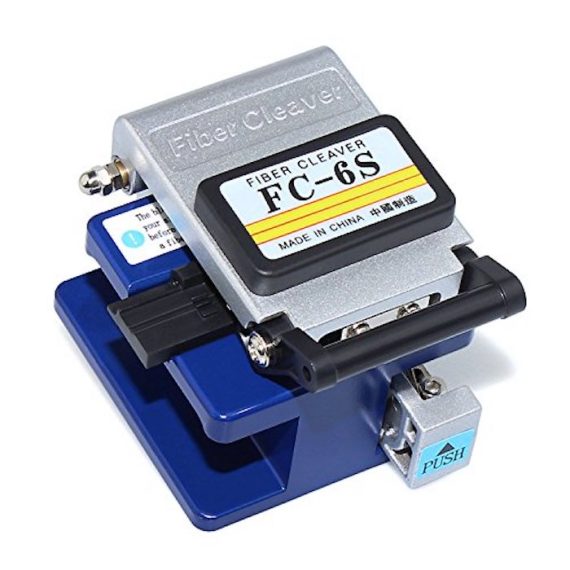

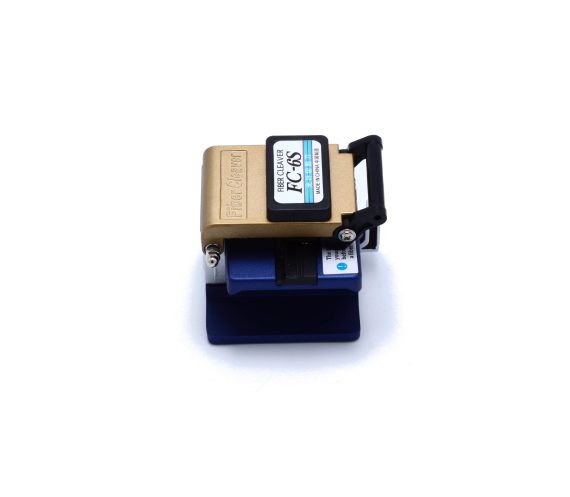

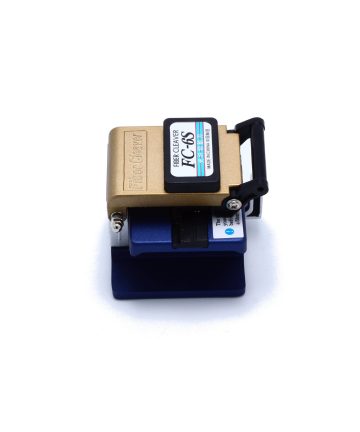

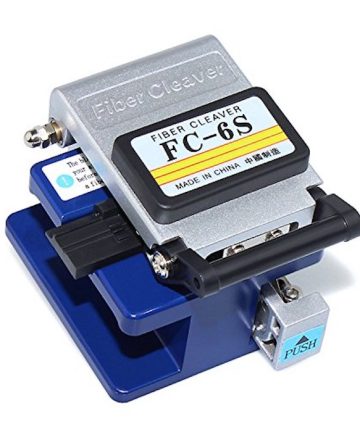

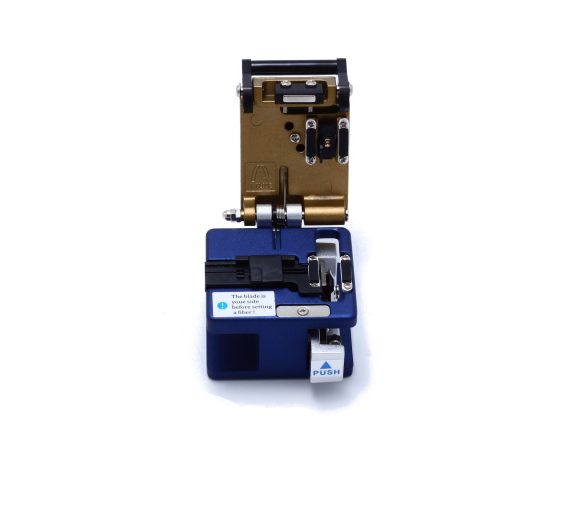

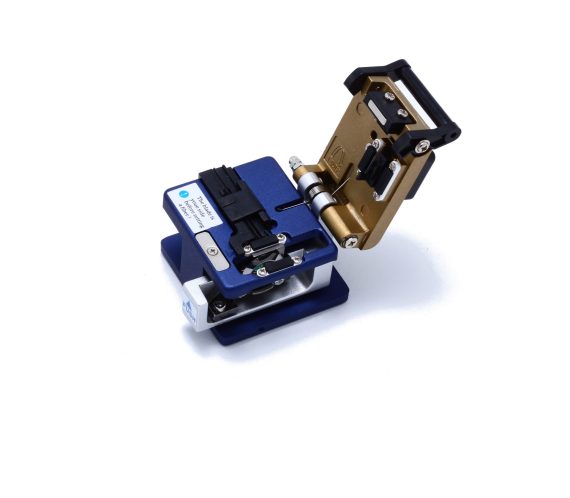

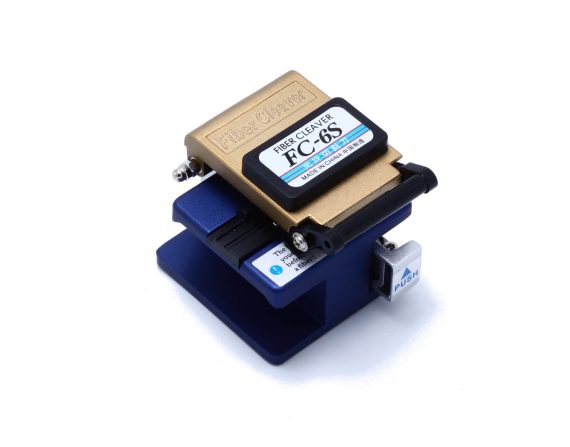

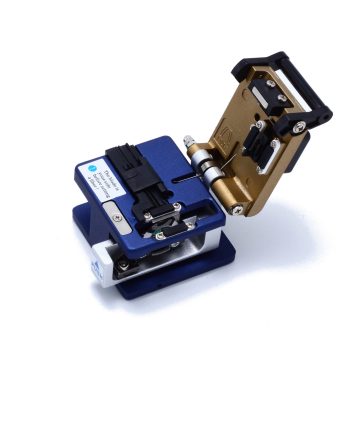

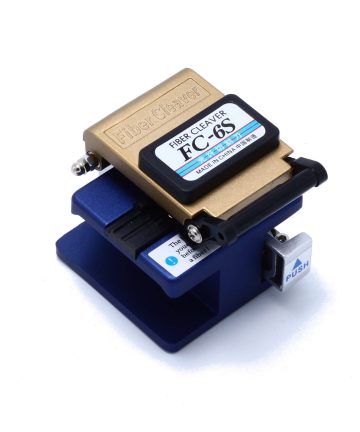

The FC-6S Cleaver is based on the Sumitomo cleaver design. It is not our highest quality cleaver but can get the job done for those on a budget.
Features
- Provides approximately 15,000 cleaves
- Compact body & light weight
- High Precision Cleaves
- Cost Effective Design
- Singlemode or Multimode Use
- 12 Position Rotatable and Replicable Blade
Specifications:
| Model | FC-6S |
| Applicable Fibers | Singlemode or Multimode |
| Fiber Diameter | 125µm |
| Typical Cleave Angle | <0.5 Degrees |
| Cleave Length | 9 – 16mm |
| Blade Life Time | 15,000 cleaves |
| Base Material | Aluminum Alloy |
| Blade Material | Tungsten |
| Cleaver Dimensions | 63 x 65 x 63mm |
| Weight | 0.3kg |
