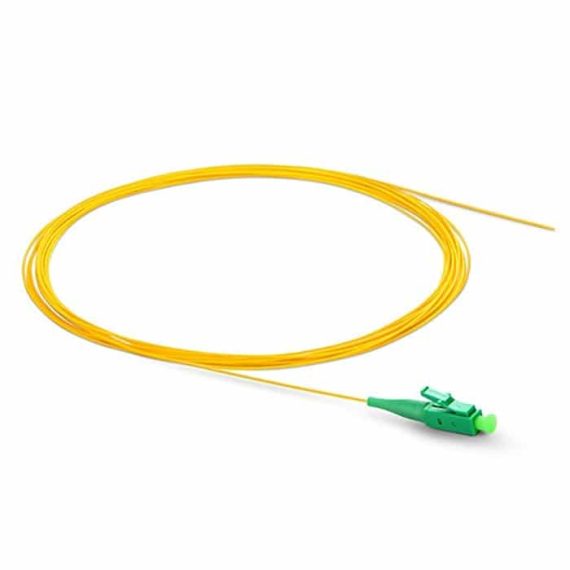

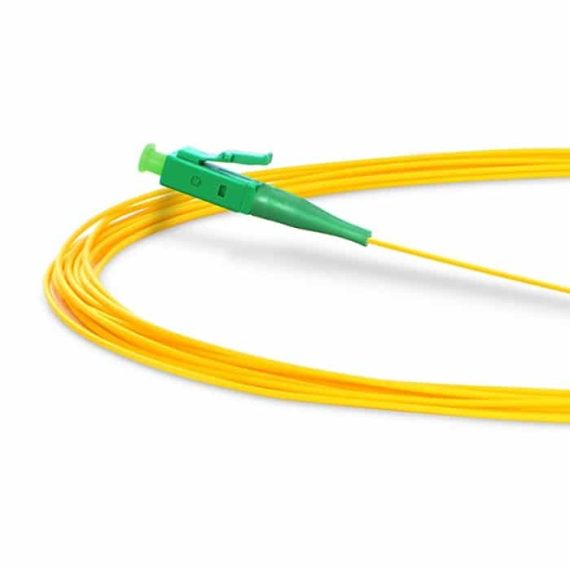

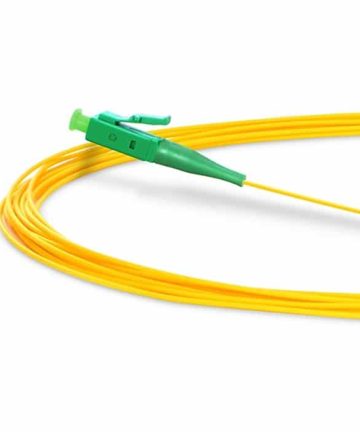

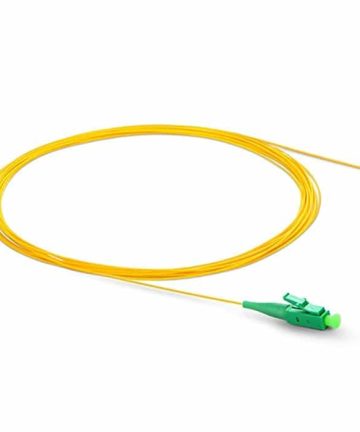

Data SheetPigtails are the fastest and highest quality connection type you can have when terminating fiber cable. Using a fusion splicer (or mechanical splice joint), you will be able to connect a large range of fiber cables and terminate within an enclosure.
These pigtails are designed to be installed within an enclosure and connected to a midcoupler. A fiber patch cable from that point or another pigtail can be connected to achieve a connection to a desired location or end point termination.
Our fiber pigtails are designed for splicing into any FTTx, enterprise, industrial, security or data center application. All Southern Elements pigtails are manufactured and tested according to protocol and performance dictated by the industry standards.
Our fiber pigtails are ideal for connecting 1G/10G/40G/100G/400G connections.
Specifications:
| Connector Type | LC |
| Connector Polish | APC |
| Connector Insertion Loss | 0.3 ≥ dB |
| Connector Return Loss | 60 ≤ dB |
| Interchangeability | ≤0.2 dB |
| Vibration | ≤0.2 dB |
| Length | 1.5m |
| Classification | Semi Tight Buffer |
| Jacket Type | LSZH |
| Fiber Type | Single Mode G657.A1 (9/125µm) |
| Colour | Yellow |
| Cable Layers |
|
| Wavelengths | 1310 / 1490 / 1550 / 1625 nm |
| Minimum Bend Radius | 10mm |
| Attenuation | 0.4± db/Km |
| Weight | 15.6 kg/Km |
| Diameter | 2mm x 4.45mm |
| Tensile Strength | 5N |
| Operating Temperature | -40~75°C |
