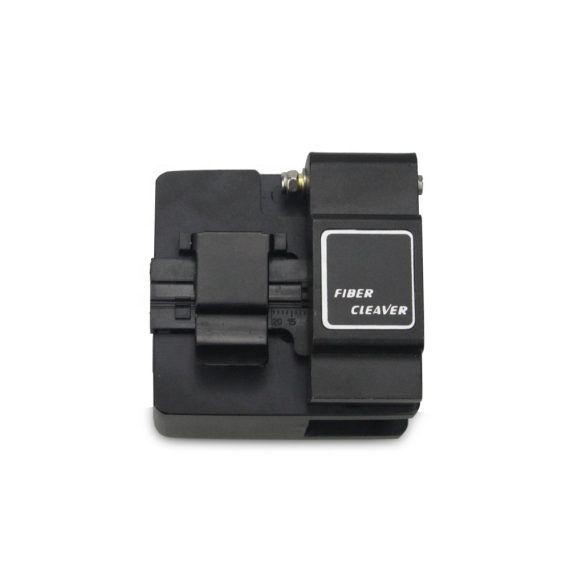

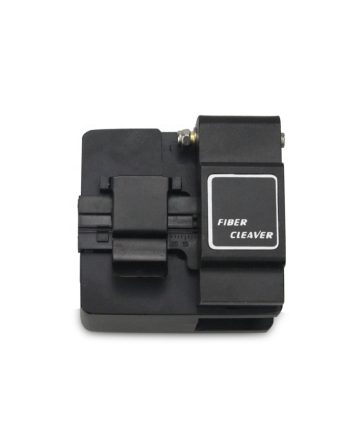

High Precision Fiber Optic Cleaver – WSK-20C

R1,324.80 inc VAT

SKU: SES00070
Availability: 79 In Stock
Categories: ,

This high precision fiber optic cleaver is used to cut the glass strands used in fusion splicing. It is also ideal for preparing fiber for pre-polished connectors to make a good end face connections, which is very important in the fiber splicing process, usually it is used in thefusion splicer to meet the installers needs. …

79 in stock

This high precision fiber optic cleaver is used to cut the glass strands used in fusion splicing. It is also ideal for preparing fiber for pre-polished connectors to make a good end face connections, which is very important in the fiber splicing process, usually it is used in thefusion splicer to meet the installers needs.



Features
♦ Stable operation with Multi-Action process
♦ Typical cleave angle: 90°± 0.5°
♦ Compact & handy outfit design
♦ High precision cleaving blade with 16 cleave spots
♦ Scratch-free anodized body surface
♦ Simplified blade adjustment & replacements
♦ Built-in maintenance tool attached: on the bottom



Advantages:
1. Small size, lightweight, and easy handling
2. Applicable up to 12-fibre ribbon cleaving
3. Fibre collector equipped as standard
4. 2-action operation including fibre scrap collection
5. Operation: Push back blade -> Set fibre -> Close body
6. Blade speed and anvil speed are mechanically controlled
7. Blade is common to CT-20 series cleavers
8. 16 rotating positions, 3 height positions

9. Blade life is same as CT-20 series cleavers, 48,000 cleaving

Specifications:

Blade Life Up to 48,000 Cleaves
Angle Capability 90° ± 0.5°
Weight 0.366 kg
Dimensions 12.0 × 7.0 × 11.1 mm
